Developing Applications and DLLs in Visual Studio 2012

Use the RTX64 Application Wizard in Microsoft Visual Studio 2012 to create a project and solution for the development of RTX64 applications or dynamic link libraries. The RTX64 project contains four build configurations: Windows Release, Windows Debug, RTSSRelease, and RTSSDebug. The RTX64 Application Wizard sets the project settings for each configuration according to the program and project options selected from its dialog boxes. It can also provide a basic C/C++ program framework with which to work. This program framework can include RTX64 program elements, which contain C/C++ code to create RTX64 objects and demonstrate their use.

NOTE: RTX64 only supports absolute pathnames.

Topics:

• Creating a RTX64 project
• Editing application settings
• Editing program settings for applications
• Compiler and linker options for the Application Wizard in Visual Studio 2012

Creating a RTX64 Project

RTX64 Application Wizards provide the structure for creating RTX64 applications or RTDLLs. Use the following procedure to create an RTX64 project using any RTX64 Application Wizard in Microsoft Visual Studio.

NOTE: RTX64 does not support the building of managed RTSS applications. For additional information on using RTX64 from within a Windows managed code application, see the RTX64 Managed Code Reference Manual.

To create an RTX64 Project:

1. From the Visual Studio menu bar select File > New > Project.
2. Select Visual C++ from the Templates list.
3. Select the following from the templates area:

• RTX64 Application

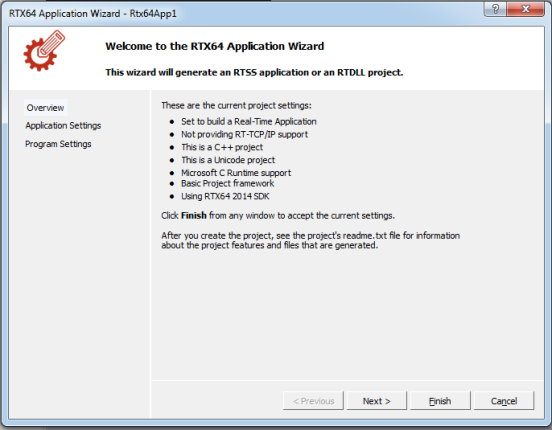

4. The Overview page displays the current settings of the RTX64 Project. To accept the current settings, click Finish. To edit project settings, see Editing Application Settings below.

Editing Application Settings

The Overview page in the RTX64 Application Wizard displays the current settings for the RTX64 project. To change these settings, follow the steps below.

To edit the RTX64 Application Wizard Application Settings in Visual Studio:

1. Click Application Settings in the left panel of the RTX64 Application Wizard.

2. SDK Version: If you have multiple versions of the SDK installed, select which version you want to use. Note that if you build a binary using the RTX64 2013 SDK, it will not load in any newer RTX64 runtime versions. And if you build a binary using the RTX64 2014 SDK, it will not load in previous version of RTX64 runtime.
3. Application Type: The RTX64 Application Wizard sets the Application Settings in each configuration for compiling and linking programs. To build an RTX64 application, select Real-Time application (RTSS). To build an RTDLL, select Real-Time Dynamic Link Library (RTDLL).
4. Add additional headers and libraries:
5. Add support for RT-TCP/IP – adds RT-TCP/IP support.
6. Add Microsoft C/C++ Runtime Support – adds C/C++ Runtime support. Most programs need support for C Runtime functions.
4. Source Code: You can create a project in C or C++. Select the type of project source you want to create.
5. Supported String Convention: Choose Unicode or ASCII.
6. If these are all the options needed, click Finish. Otherwise, click Next to continue editing program settings for this application.

Editing Program Settings for Applications

To edit the RTX64 Application Wizard Program Settings in Visual Studio:

1. Click Program Settings in the left panel of the RTX64 Application Wizard.

2. The RTX64 Application Wizard can build a basic program framework consisting of source and header files, or it can build an empty project. If Empty Project is un-checked, the RTX64 Application Wizard inserts into the project C/C++ source files that contain basic program functionality and header files that contain include and define statements.  If Empty Project is checked, the RTX64 Application Wizard sets only the project settings and does not include any header or C/C++ files, and all program elements become grayed-out.
3. If Empty Project is un-checked, RTX64 program elements can be included into the program framework.  These code segments show proper usage of Real-time API function calls and can serve as examples of how to set up these elements.  Areas in the element code that need to be customized by the user are indicated by "TO DO" comments. You can select more than one type of programming element for a single project. The following table provides the available program elements.

Element	Description
Event server thread	Inserts a code segment into the program framework that creates a child thread function shell, a named event and a child thread, and sets thread priorities and resumes/suspends threads.  The user should supply the child thread function code, the event name and exception code. This option is only available if you specified an RTX64 application as the type of program to be built when you set the application settings.
Periodic timer thread	Creates a periodic timer function shell, and inserts a code segment into the program framework that creates and sets a periodic timer. The user should supply the timer period, the periodic timer function code, and exception code. This option is only available if you specified an RTX64 application as the type of program to be built when you set the application settings.
Interrupt Service Routine (ISR)	Creates a basic Interrupt Service Routine template that can be used to determine the interrupt owner when an interrupt is shared. Inserts code segments into the program framework to support interrupt sharing
Interrupt Service Thread (IST)	Adds support for sharing an interrupt.
Basic Port I/O	Inserts a code segment into the program framework that supports Port I/O. Enables/disables Port I/O, and demonstrates basic reading and writing to an I/O Port.
Basic mapped memory	Inserts a code segment into the program framework that supports Memory Mapping. Note: This element is not supported for serial devices.
Export function	Inserts a code segment into the program framework that creates a RTDLL shell.  This option is only available if you specified RTDLL as the type of program to be built when you set the application settings.

4. Click Finish. The RTX64 Application Wizard generates the RTX64 solution and project according to the options you selected.

NOTE: RTX64 utilizes a custom macro, $(Rtx64Platform), that is used to find the correct library directory for projects. This custom macro requires two property files, which are installed with the RTX64 SDK:

• Rtx64.cpp.x64.user.props
• Rtx64.cpp.win32.user.props

All projects import these property files. If they are edited in any way, projects will not load correctly.

Compiler and Linker Options

For a complete list, see Compiler and Linker Options for the RTX64 Application Wizard Using Visual Studio 2012.
