RTX64 Vision Architecture

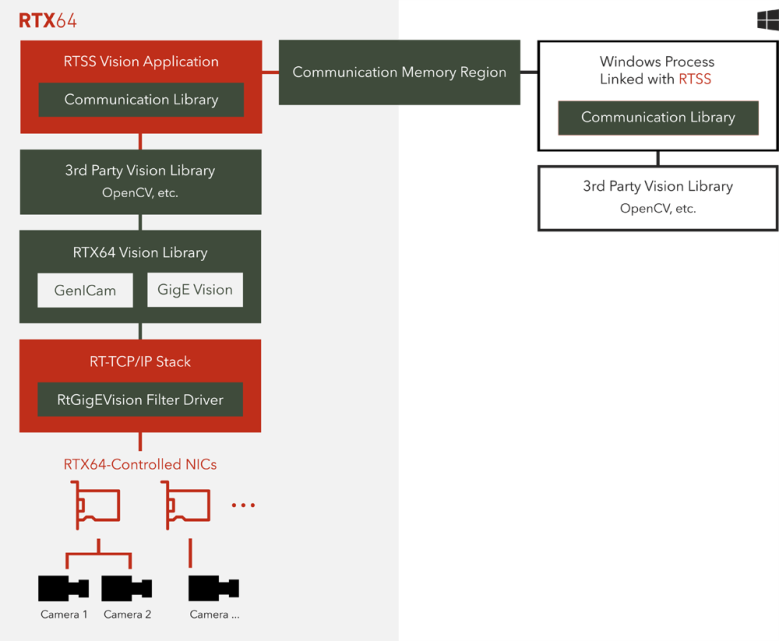

RTX64 Vision provides functionality for controlling GigE Vision Cameras within the RTSS environment. It has the ability to discover cameras on the network, to query different configuration settings (such as image width, height, pixel formats, etc.) of those cameras, and to acquire image data from them as well. To do this, RTX64 Vision utilizes the GenICam™ GenAPI to read in the Camera Description File, and the GigE protocols to control the camera and receive image data from it. A 3rd party vision library, such as OpenCV, can be layered on top of RtVision to provide all of the functionality within that library. Finally, RtVision provides a communication library for passing images between RTSS and Windows, which can be used to perform tasks which are more easily done in the Windows environment, such as displaying captured images in a GUI.
