Interval Plot

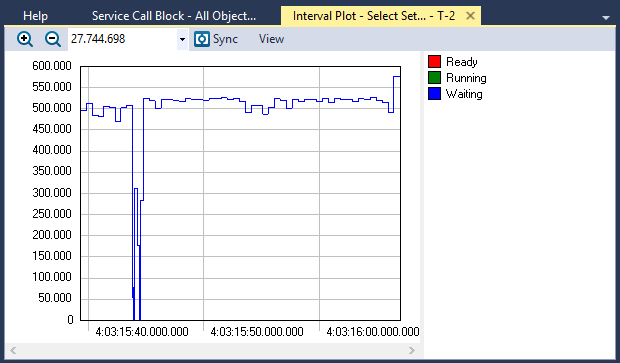

The Interval Plot view (Views > Interval Plot) plots the duration of intervals over time. This is ideal if you want to study how the distance in time between two important events varies. For more information on intervals, see Intervals and State Machines.

View Options

The View menu contains several options that allow you to change the graph’s display and content.

Option	Description
Clone View	Creates a duplicate copy of the view in the same window.
Draw Markers	Toggles display of markers.
Line Style	Choose a line style for the graph to display: No Lines Steps Straight
Show Unit on Scale	Toggles display of the units of measurement.
Configure Y-Axis...	Opens the Configure Y-Axis dialog, through which you can choose an automatic (default) or manual setup.
Show in Trace View	Show this data in the current Trace View or create a new Trace View to show the data.
Export to File	Opens the Export Graph dialog, through which you can export the graph data to a CSV file.
Show Bookmarks	Toggles display of bookmarks
Show Legend	Toggles display of the color legend.
Show ScrollBar	Toggles display of the scroll bar.
Settings	Opens the View Settings dialog, through which you can set current and default settings for this view.
