Priority Changes

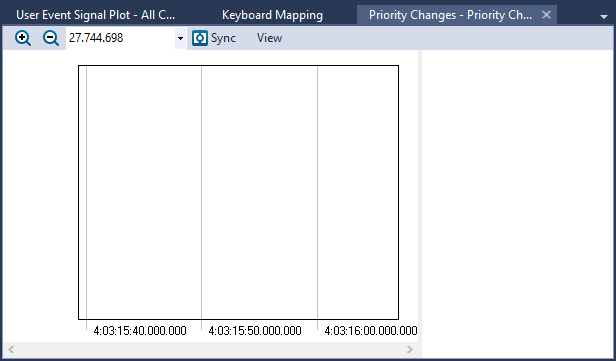

The Priority Changes view (Views > Priority Changes) displays instances where the scheduling priority of a thread changed. The Y-axis shows the new priority level.

View Options

The View menu contains several options that allow you to change the graph’s display and content.

Option	Description
Clone View	Creates a duplicate copy of the view in the same window.
Draw Markers	Toggles display of markers.
Line Style	Choose a line style for the graph to display: No Lines Steps Straight
Show Unit on Scale	Toggles display of the units of measurement.
Configure Y-Axis	Opens the Configure Y-Axis dialog, through which you can choose an automatic (default) or manual setup.
Show in Trace View	Show this data in the current Trace View or create a new Trace View to show the data.
Export to File	Opens the Export Graph dialog, through which you can export the graph data to a CSV file.
Show Bookmarks	Toggles display of bookmarks
Show Legend	Toggles display of the color legend.
Show ScrollBar	Toggles display of the scroll bar.
Settings	Opens the View Settings dialog, through which you can set current and default settings for this view.
