State Machines Graph

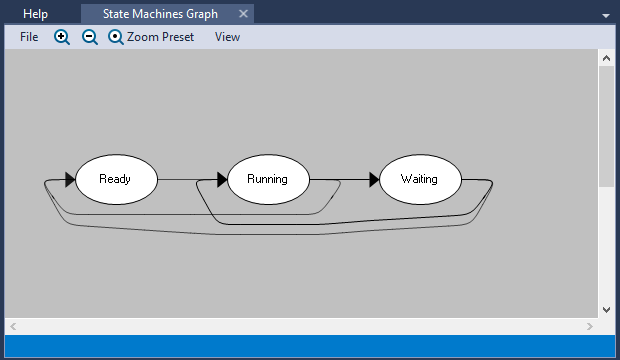

The State Machines Graph view (Views > State Machines Graph) displays a directed graph showing the state transitions in the trace as defined by a state machine. See Intervals and State Machines for further information on state machines and the related concept of intervals.
View Options
The View menu contains several options that allow you to change the graph’s display and content.
| Option | Description |
|---|---|
| Focus On Selection Mode |
Focuses on the current selection. |
| Show Details on Selection |
Shows details on the current selection. |
| Create New State Machine | Opens the New State Machine dialog, through which you can create a simple or advanced state machine. |
