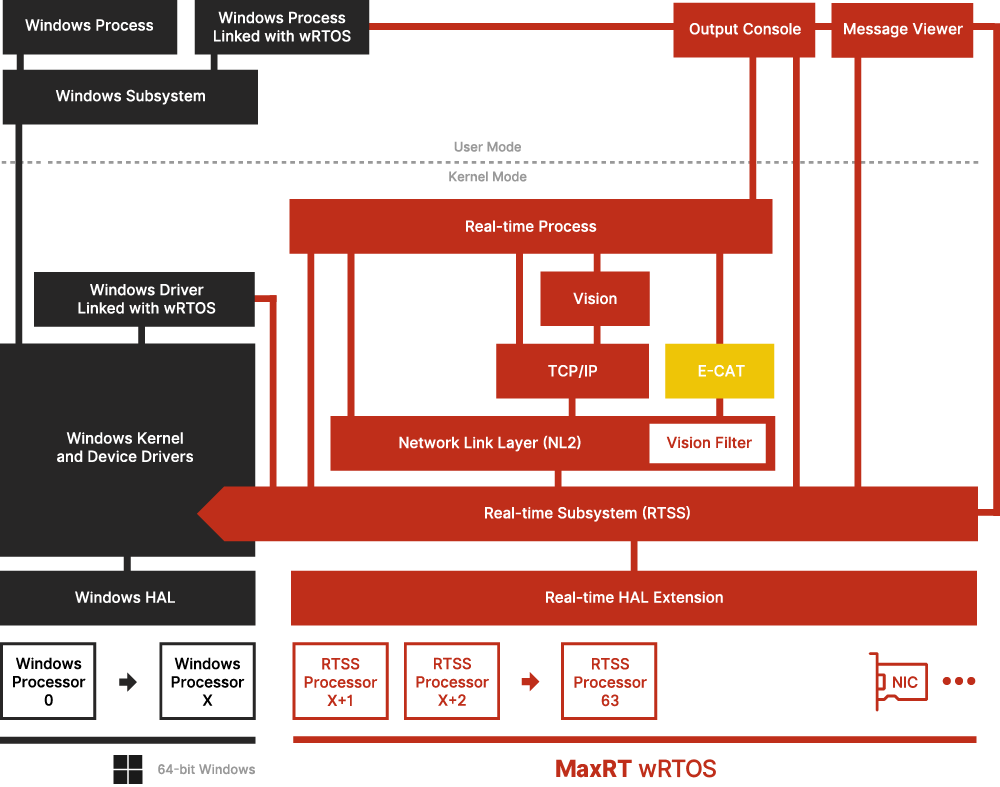

E-CAT Architecture

E-CAT exposes Windows and real-time interfaces that offer support for CANopen over EtherCAT and simplifies the configuration of EtherCAT networks with its unique plug-and-play approach.

Optional add-on feature packages:

• High Speed Timer
• Multiple MainDevice
• Hot Connect
• Cable Redundancy

This component requires a license. E-CAT requires a wRTOS Fieldbus license (WFBS64), which supports the use of the EtherCAT MainDevice and future fieldbuses. Contact IntervalZero Sales to purchase licenses.
